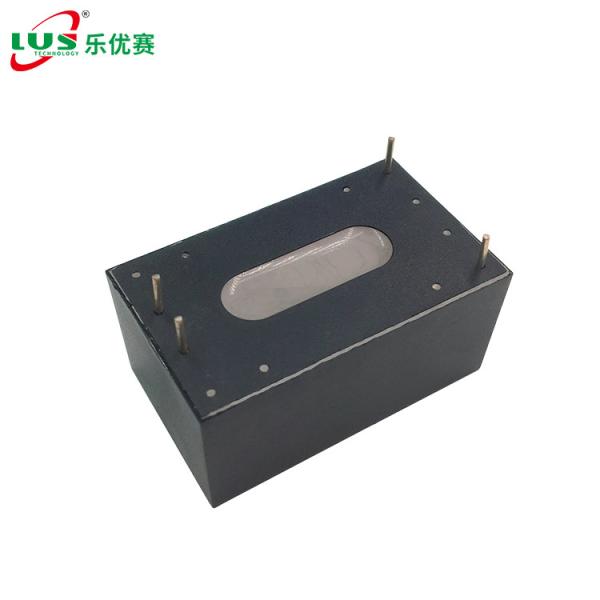

    Single Output 5W AC To DC Power Module Hilink HLK5M03

    Ask Lasest Price
    Brand Name : HLK or OEM
    Model Number : HLK5m03
    Price : Bargain
    Payment Terms : T/T
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    Single Output 5W AC To DC Power Module Hilink HLK5M03

    Product

    Name:

    5W POWER MODULE ac to dc main 5M03/5M05/5M09/5M12/5M15 5M24 Power Module hILINK hlk5M03


    Description:

    ac/dc power module

    power supply 5w

    2w acdc converter

    universal regulated power supply

    conversor de energia 220v para 5 acdc v 6w

    power supply module price

    gan power supply

    50 watts dc ac converter bord

    open frame power 24v 10a

    5v 3w power module


    220V to 3.3V 5V 9V 12V 24V 5W output AC DC switch power supply 5M03 with Customized Logo

    Hilink 5m03 power supply technical:

    ItemsTechnical ParametersUnitsNotes
    No-load rated output voltage3.3±0.1Vdc
    Full-load tated output voltage3.3±0.2Vdc
    Short time maximum output current≥1800mA
    Long time maximum output current1500mA
    Voltage regulation±0.2%
    Load regulation±0.5%
    Input low voltage efficiencyVin=115Vac, Output full load≥69%
    Input high voltage efficiencyVin=230Vac, Output full load≥70%
    Output ripple and noise (mVp-p)≤50 Rated input voltage,output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance testmV
    Switching on/off overshoot amplitude(Rated input voltage, output plus 10% load)≤5%Vo
    Output over-current protectionOutput maximum load 110-150%A
    Output short circuit protectionDirect short circuit in normal output and automatic return to nomal operation after removal of short circuit No-damage to the whole device

    Ultra small series power module list:

    Model NO.Size (mm)Weight (g)Output Power (w)Output Voltage (v)Output Current (mA)Efficiency %(TYP)
    HLK-2M0330*16*1918g2W3.360069
    HLK-2M055400
    HLK-2M099230
    HLK-2M1212170
    HLK-2M242484
    HLK-PM0134*20*1520g3W560072
    HLK-PM033.31000
    HLK-PM099330
    HLK-PM1212250
    HLK-PM2424125
    HLK-5M0338*23*1832g5W3.3150072
    HLK-5M0551000
    HLK-5M099560
    HLK-5M1212450
    HLK-5M2424208
    HLK-10M0347*28*2240g10W3.3300072
    HLK-10M0552000
    HLK-10M099110078
    HLK-10M1212830
    HLK-10M2424416
    HLK-12M1250.8*25.4*1580g12W12100086
    HLK-20M0557*33*22.580g20W5400080
    HLK-20M0992200
    HLK-20M12121666
    HLK-20M15151300
    HLK-20M242483384
    HLK-30M0556*32*22.580g30W5600089
    HLK-30M099330090
    HLK-30M12122500
    HLK-30M15152000
    HLK-30M24241250
    HLK-40M0556*32*22.580g40W5800089
    HLK-40M099440090
    HLK-40M12123300
    HLK-40M15152600
    HLK-40M24241600

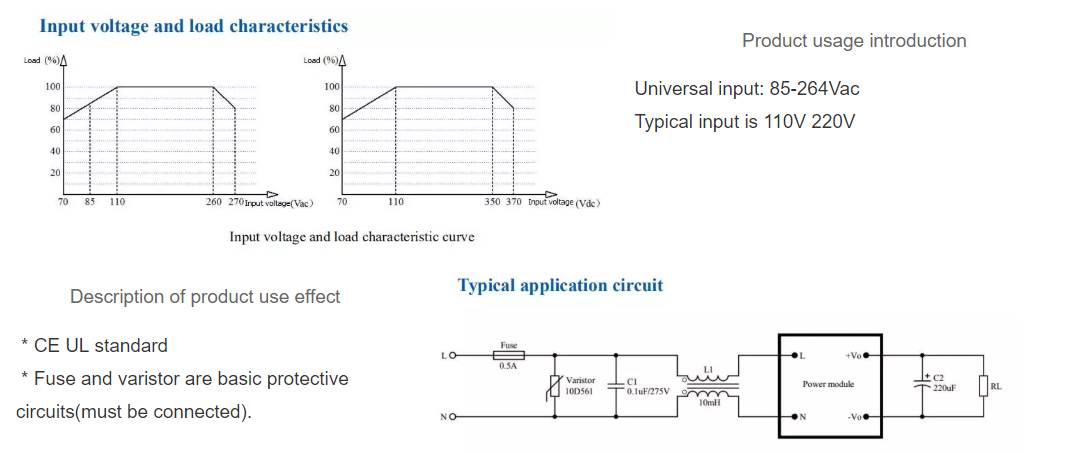

    HILINK 5W POWER MODULE CARACTERISTICS:


    5w POWER SUPPLY hlk5m03 Dimenstion:


    Package:
