3W 24V 0.125A Hilink AC DC Switching Power Module

Ask Lasest Price
Brand Name :	Hilink or OEM
Model Number :	HLKpm24
Price :	Bargain
Payment Terms :	T/T
Supply Ability :	50k /month
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

3W 24V 0.125A Hilink AC DC Switching Power Module

ac dc switching power module hlk-pm24 AC DC converter 3W series power module 24v 0.125a hilink acdc module hilinkpm24

Name: AC DC power supply HLKpm24 mini power module

Description:

ac dc switching power module hlk-pm24 AC DC converter 3W series power module 24v 0.125a hilink acdc module hilinkpm24

power module ac to dc 12 v

power module ac to dc 220v to 12 v

ultra small power supply

module 12v protection lithium

ac dc pcb power supply 24volt

3.7v to 5v step up converter

00:28 hlk-pm01 ac-dc 220v to 5v3w 90-245v mini

power line communication modem

220v to 33v ac dc converter

265 v power module

Items	Technical Parameters	Units	Notes
No-load rated output voltage	24.0±0.1	Vdc
Full-load tated output voltage	24.0±0.2	Vdc
Short time maximum output current	≥220	mA
Long time maximum output current	125	mA
Voltage regulation	±0.2	%
Load regulation	±0.5	%
Input low voltage efficiency	Vin=115Vac, Output full load≥73	%
Input high voltage efficiency	3Vin=230Vac, Output full load≥73	%
Output ripple and noise (mVp-p)	≤150 Rated input voltage,output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test	mV
Switching on/off overshoot amplitude	(Rated input voltage, output plus 10% load)≤5	%Vo
Output over-current protection	Output maximum load 110-130%	A
Output short circuit protection	Direct short circuit in normal output and automatic return to nomal operation after removal of short circuit		No-damage to the whole device

Product features

1). Meet UL, CE requirements
2). Ultra-thin, ultra-small
3). All voltage input (AC: 90 ~ 264V)
4). Low ripple and low noise
5). Output overload and short circuit protection
6). High efficiency, high power density
7). The product is designed to meet the requirements of EMC and Safety Test
8). Low power consumption, environmental protection, no-load loss <0.1W
9). 100% load aging and testing
10). 1 year warranty perio

Characteristic

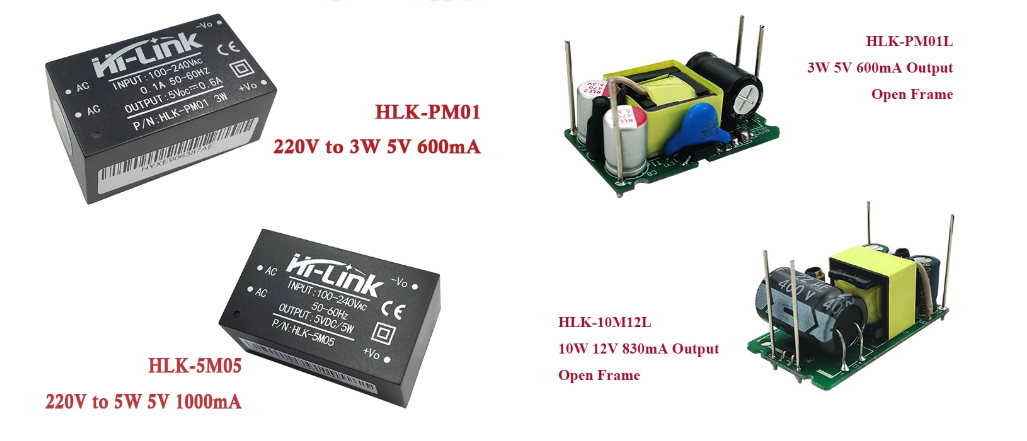

Recommend Products

We have many styles , please contact me for more info .

Model NO.	Size (mm)	Weight (g)	Output Power (w)	Output Voltage (v)	Output Current (mA)	Efficiency %(TYP)
HLK-2M03	301619	18g	2W	3.3	600	69
HLK-2M05				5	400
HLK-2M09				9	230
HLK-2M12				12	170
HLK-2M24				24	84
HLK-PM01	342015	20g	3W	5	600	72
HLK-PM03				3.3	1000
HLK-PM09				9	330
HLK-PM12				12	250
HLK-PM24				24	125
HLK-5M03	382318	32g	5W	3.3	1500	72
HLK-5M05				5	1000
HLK-5M09				9	560
HLK-5M12				12	450
HLK-5M24				24	208
HLK-10M03	472822	40g	10W	3.3	3000	72
HLK-10M05				5	2000	72
HLK-10M09				9	1100	78
HLK-10M12				12	830
HLK-10M24				24	416
HLK-12M12	50.825.415	80g	12W	12	1000	86
HLK-20M05	573322.5	80g	20W	5	4000	80
HLK-20M09				9	2200
HLK-20M12				12	1666
HLK-20M15				15	1300
HLK-20M24				24	833	84
HLK-30M05	563222.5	80g	30W	5	6000	89
HLK-30M09				9	3300	90
HLK-30M12				12	2500
HLK-30M15				15	2000
HLK-30M24				24	1250
HLK-40M05	563222.5	80g	40W	5	8000	89
HLK-40M09				9	4400	90
HLK-40M12				12	3300
HLK-40M15				15	2600
HLK-40M24				24	1600
