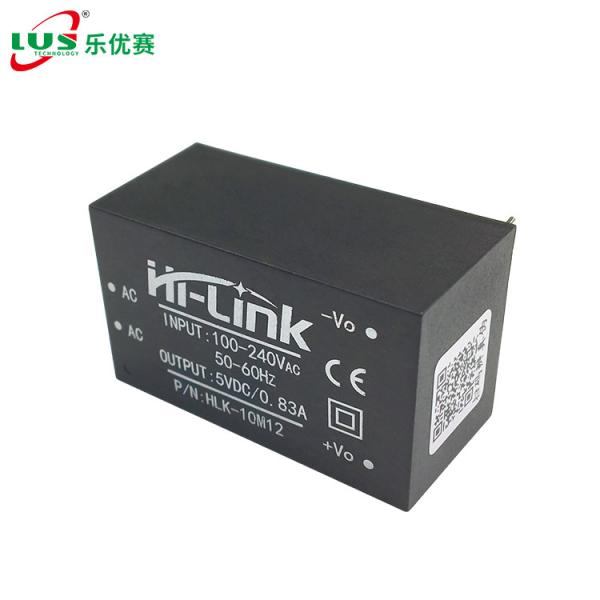

12v dc power module HLK10M12 switching power supply 5v 12v module
hilink hilink10m12 12v power supply module
Name:
12v power module hlk10m12 intelligent power module 12v dc 10w ups
for ac power hilink
ac dc power module
12v power supply module
12v 10w ac dc power module
power supply switching
ac/dc 230 - 5v supply
5v stepdown regulator
ac dc 12v 30w
hilink 12v 20w
small mini power supply
220v to 5v 3000ma
220v to 5v 3apower supply
ac to dc switching power supply 12v 3a circuit
ac power supply variable freq
hi-link 12v
12v 3a power supply
12v/3a conveter
Description:
10W Ultra-Compact Power Module
10M03/10M05/10M09/10M12/10M24
The 10W ultra-small series power supply module is a small volume,
high efficiency power module designed
for customers by Hi-Link. It has the advantage of global input
voltage range, low temperature rise, low power
consumption, high efficiency, high reliability, high security
isolation etc.,and has been widely used in smart home,
automation control, communication equipment, instruments and other
industries.
HIlink hlk10m12 Technical:
| Items | Technical Parameters | Units | Notes |
| No-load rated output voltage | 12±0.1 | Vdc | |
| Full-load tated output voltage | 12±0.2 | Vdc | |
| Short time maximum output current | ≥900 | mA | |
| Long time maximum output current | ≥830 | mA | |
| Voltage regulation | ±2 | % | |
| Load regulation | ±0.5 | % | |
| Output ripple and noise (mVp-p) | ≤70 Rated input voltage,output full load. With 20MHz bandwidth
oscilloscope, Load side 10uF and 0.1uF capacitance test | mV | |
| Switching on/off overshoot amplitude | (Rated input voltage, output plus 10% load)≤5 | %Vo | |
| Output over-current protection | 110-150% of maximum output load | A | |
| Output short circuit protection | Direct short circuit in normal output and automatic return to nomal
operation after removal of short circuit | | No-damage to the whole device |
10W mini power supply drawing:
Hot ACDC power module:
| Model No. | Size (mm) | Weight (g) | Output Power (w) | Output Voltage (v) | Output Current (mA) | Efficiency %(TYP) |
| HLK-2M03 | 30*16*19 | 18g | 2W | 3.3 | 600 | 69 |
| HLK-2M05 | 5 | 400 |
| HLK-2M09 | 9 | 230 |
| HLK-2M12 | 12 | 170 |
| HLK-2M24 | 24 | 84 |
| HLK-PM01 | 34*20*15 | 20g | 3W | 5 | 600 | 72 |
| HLK-PM03 | 3.3 | 1000 |
| HLK-PM09 | 9 | 330 |
| HLK-PM12 | 12 | 250 |
| HLK-PM24 | 24 | 125 |
| HLK-PM01L | 32*18*12 | 10g | 3W | 5 | 600 | 72 |
| HLK-PM03L | 3.3 | 1000 |
| HLK-PM09L | 9 | 330 |
| HLK-PM12L | 12 | 250 |
| HLK-PM24L | 24 | 125 |
| HLK-5M03 | 38*23*18 | 26g | 5W | 3.3 | 1500 | 72 |
| HLK-5M05 | 5 | 1000 |
| HLK-5M09 | 9 | 560 |
| HLK-5M12 | 12 | 450 |
| HLK-5M24 | 24 | 208 |
| HLK-10M03 | 47*28*22 | 40g | 10W | 3.3 | 3000 | 72 |
| HLK-10M05 | 5 | 2000 |
| HLK-10M09 | 9 | 1100 | 78 |
| HLK-10M12 | 12 | 830 |
| HLK-10M24 | 24 | 416 |
| HLK-10M03L | 44.5*25*19 | 23g | 10W | 3.3 | 3000 | 72 |
| HLK-10M05L | 5 | 2000 |
| HLK-10M09L | 9 | 1100 | 78 |
| HLK-10M12L | 12 | 830 |
| HLK-10M24L | 24 | 416 |
| HLK-12M12 | 50.8*25.4*15 | 80g | 12W | 12 | 1000 | 86 |
| HLK-20M05 | 57*33*22.5 | 80g | 20W | 5 | 4000 | 80 |
| HLK-20M09 | 9 | 2200 |
| HLK-20M12 | 12 | 1666 |
| HLK-20M15 | 15 | 1300 |
| HLK-20M24 | 24 | 833 | 84 |
| HLK-30M05 | 56*32*22.5 | 80g | 30W | 5 | 6000 | 89 |
| HLK-30M09 | 9 | 3300 | 90 |
| HLK-30M12 | 12 | 2500 |
| HLK-30M15 | 15 | 2000 |
| HLK-30M24 | 24 | 1250 |
| HLK-40M05 | 56*32*22.5 | 80g | 40W | 5 | 8000 | 89 |
| HLK-40M09 | 9 | 4400 | 90 |
| HLK-40M12 | 12 | 3300 |
| HLK-40M15 | 15 | 2600 |
| HLK-40M24 | 24 | 1600 |
Hilink DC DC power :
| Model No. | Output Power (W) | Size (mm) | Input Voltage | Output Voltage
(Vdc) | Ouput Current (mA) | Output voltage form | Isolation voltage |
| HLK-1D0505 | 1 | 11.5*6.0*10.0 | 4.5~5.5Vdc | +5 | 200 | Single unregulated | 1500Vdc |
| HLK-1D0505A | +5 | 200 |
| HLK-1D1205 | 10.8~13.2Vdc | +5 | 200 |
| HLK-1D1212 | +12 | 84 |
| HLK-1D1215 | +15 | 67 |
| HLK-1D2405 | 21.6~26.4Vdc | +5 | 200 |
| HLK-5D1205 | 5 | 25.4*25.4*11 | 9~18Vdc | +5 | 1000 | Single voltage regulator |
| HLK-5D1212 | +12 | 420 |
| HLK-5D1215 | +15 | 330 |
| HLK-5D1224 | +24 | 210 |
| HLK-5D2405 | 18~36Vdc | +5 | 1000 |
| HLK-5D2412 | +12 | 420 |
| HLK-10D2405 | 10 | 25.4*25.4*11 | 9~36Vdc | +5 | 2000 |
| HLK-10D2412 | +12 | 830 |
| HLK-10D2424 | +24 | 420 |
| HLK-10D4805 | 18~75Vdc | +5 | 2000 |
| HLK-10D1205B | 10 | 50.8*25.4*11 | 9~18Vdc | +5 | 2000 |
| HLK-10D1212B | +12 | 830 |
| HLK-10D2405B | 18~36Vdc | +5 | 2000 |
| HLK-10D2412B | +12 | 830 |
| HLK-10D2424B | +24 | 420 |
| HLK-10D4805B | 36~72Vdc | +5 | 2000 |
| HLK-20D2405 | 20 | 25.4*25.4*11 | 9~36Vdc | +5 | 4000 |
| HLK-20D2412 | +12 | 1666 |
| HLK-20D2405C | 20 | 50.8*25.4*11 | 9~36Vdc | +5 | 4000 |
| HLK-20D2412C | +12 | 1666 |
| HLK-30D2405C | 30 | 50.8*25.4*11 | 9~36Vdc | +5 | 6000 |
| HLK-30D2412C | +12 | 2500 |
| HLK-30D2424C | +24 | 1250 |
| HLK-40D2405 | 40 | 50.8*50.8*12.7 | 18~36Vdc | +5 | 8000 |
