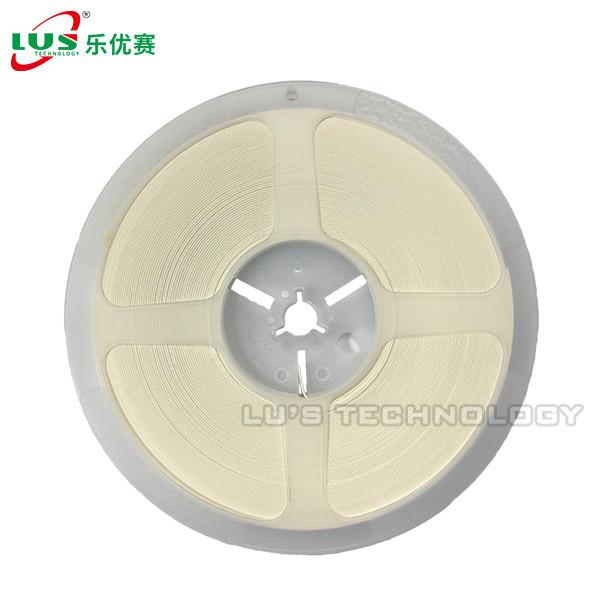

    Thick Film Chip Resistors 0805W8F3002T5E SMD Chip 0805 30.0kΩ 1/8W

    Ask Lasest Price
    Brand Name : Original
    Model Number : 0805W8F3002T5E
    Price : Bargain
    Payment Terms : T/T
    Supply Ability : 1m/months
    Delivery Time : 1-7 days
    • Product Details
    • Company Profile

    Thick Film Chip Resistors 0805W8F3002T5E SMD Chip 0805 30.0kΩ 1/8W

    Thick Film Chip Resistors 0805W8F3002T5E SMD Chip Resistor 0805 30.0kΩ 1% 1/8W

    Product Name Thick Film Chip Resistors

    Part Name 01005/0201/0402/0603/0805/1206/1210/1812/2010/2512 Series


    Marking

    (1) For 01005,0201 and 0402 size. Due to the very
    01005,0201,0402 small size of the resistor’s
    body, there is no marking on the body.


    (2)Normally, the making of 0 0603, 0 0805,
    0 1206, 0 1210, 0 1812, 0 2010,
    0 2512 resistors as following


    (3) ±2%,5%Tolerance:The first two digits are
    significant figures of resistance and the third
    denotes number of zeros following


    (4) ±0.5%,1% Tolerance: 4 digits, first three
    digits are significant; forth digit is number of
    zeros. Letter r is decimal point.


    (5) More than 0805 specifications (including) 4 digits,
    Product below 1, show as following, the first digit
    Is “R” which as decimal point.


    (6) Standard E-96 series values of 0603 1% : due to the small size of the resistor’s body, 3 digits marking will be used to indicate the accurate
    resistance value by using the following multiplier & resistance code.
    Multiplier Code (for 0603 ±1% marking)


    CodeABCDEFGHXYZ
    Multiplier10 010 110 210 310 410 510 610 710-110-210-3

    Structure


    ToleranceResistance
    0201 Series
    +/-5%0R,1R-10M
    +/-1%10R-1M
    +/-1%1R-9.1R
    +/-1%1.1M-10M
    0402 Series
    +/-5%0R,1R-10M
    +/-1%10R-1M
    +/-1%1R-9.1R
    +/-1%1.1M-10M
    0603 Series
    +/-5%0R,1R-10M
    +/-1%10R-1M
    +/-1%1R-9.1R
    +/-1%1.1M-10M
    0805 Series
    +/-5%0R,1R-10M
    +/-1%0R,10R-1M
    +/-1%1R-9.1R
    +/-1%1.1M-10M
    1206 Series
    +/-5%0R,1R-10M
    +/-1%0R,10R-1M
    +/-1%1R-9.1R
    +/-1%1.1M-10M
    1210 Series
    +/-5%0R,1R-10M
    +/-1%0R,10R-1M
    +/-1%1R-9.1R
    +/-1%1.1M-10M
    1812 Series
    +/-5%0R,1R-10M
    +/-1%0R,10R-1M
    +/-1%1R-9.1R
    +/-1%1.1M-10M
    2010 Series
    +/-5%0R,1R-10M
    +/-1%0R,10R-1M
    +/-1%1R-9.1R
    +/-1%1.1M-10M
    2512 Series
    +/-5%0R,1R-10M
    +/-1%0R,10R-1M
    +/-1%1R-9.1R
    +/-1%1.1M-10M
